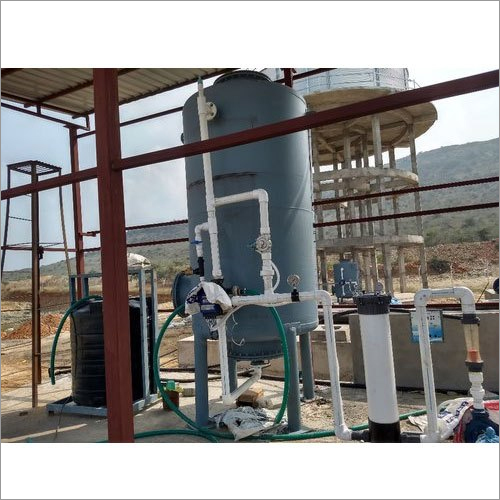

Automatic Water Softening Plant

Name: Automatic Water Softening Plant
Brand: H2O ION EXCHANGE
Price: 90000 INR
Availability: InStock

90000 INR/Piece

Get a Price/Quote

Product Details:

Technology Ion Exchange Resin Technology
Usage Water Softening for Boilers, Cooling Towers, RO Plants, etc.
Features Automatic Operation, Low Maintenance, High TDS Tolerance, Durable Construction
Flow Rate 1000 LPH to 50000 LPH
Accessories Brine Tank, Pressure Gauge, Piping & Fittings, Salt Dosage Hopper
Type Automatic Water Softening Plant
Material FRP (Fibre Reinforced Plastic), Mild Steel, Stainless Steel
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Automatic Water Softening Plant Price And Quantity

Minimum Order Quantity 1 Piece
Price Range 2000.00 - 10000.00 INR/Piece
Price 90000 INR/Piece

Approvals/Certifications ISO, CE Certified (where applicable)
Tank Coating High Grade Epoxy for Metal Tanks
Salt Consumption Varies per model; typically 6-8 kg/cycle
Inlet Hardness Handling Up to 2000 ppm as CaCO3
Start-up Time Ready within 10-30 mins
Pipe Connection Size 1
Replacement Interval Resin Replacement: approx. every 3-5 years
Design Pressure 3-6 kg/cm
Safety Features Auto Shut-off, Overload Protection
Display/Monitor Level Indicator, Pressure Indicator
Noise Level Silent Operation (<45 dB)
Control System Digital PLC/Timer Based
Effluent Water Hardness < 5 ppm as CaCO3
Resin Type Premium Food Grade Cation Exchange Resin
Regeneration System Automatic/Manual Cyclic Regeneration
Service Valve Rating High Pressure, Corrosion Resistant
Color/Finish Blue/White with Anti-Corrosive Finish

Automatic Water Softening Plant Product Specifications

Valve Type Multi-Port Automatic Control Valve
Material FRP (Fibre Reinforced Plastic), Mild Steel, Stainless Steel
Installation Type Floor Mounted
Purifying Function Hardness Removal via Ion Exchange
Dimension (L*W*H) Customizable; Typical: 500mm x 500mm x 1700mm Millimeter (mm)
Power Electric, 220V/415V Volt (v)
Temperature 5C to 55C Operating Range Celsius (oC)
Water Source Borewell, Municipal, Industrial Water
Flow Rate 1000 LPH to 50000 LPH
Mounting Type Floor Standing
Accessories Brine Tank, Pressure Gauge, Piping & Fittings, Salt Dosage Hopper
Application Industrial, Commercial, Residential
Features Automatic Operation, Low Maintenance, High TDS Tolerance, Durable Construction
Capacity 1000 LPH to 50000 LPH Ltr/hr
Weight (kg) Approx. 80-250 kg (varies per model) Kilograms (kg)
Voltage 220V/415V Volt (v)
Type Automatic Water Softening Plant
Technology Ion Exchange Resin Technology
Usage Water Softening for Boilers, Cooling Towers, RO Plants, etc.

Approvals/Certifications ISO, CE Certified (where applicable)
Tank Coating High Grade Epoxy for Metal Tanks
Salt Consumption Varies per model; typically 6-8 kg/cycle
Inlet Hardness Handling Up to 2000 ppm as CaCO3
Start-up Time Ready within 10-30 mins
Pipe Connection Size 1
Replacement Interval Resin Replacement: approx. every 3-5 years
Design Pressure 3-6 kg/cm
Safety Features Auto Shut-off, Overload Protection
Display/Monitor Level Indicator, Pressure Indicator
Noise Level Silent Operation (<45 dB)
Control System Digital PLC/Timer Based
Effluent Water Hardness < 5 ppm as CaCO3
Resin Type Premium Food Grade Cation Exchange Resin
Regeneration System Automatic/Manual Cyclic Regeneration
Service Valve Rating High Pressure, Corrosion Resistant
Color/Finish Blue/White with Anti-Corrosive Finish

Automatic Water Softening Plant Trade Information

Supply Ability 1 Piece Per Day
Delivery Time 1 Days

Product Description

In order to keep pace with the never ending needs of prestigious clients, we are offering a broad assortment of Automatic Water Softening Plant. It is convenient to install and operate. This plant is well equipped with a steel materials and tools. It is counted as an excellent way to eliminate hard water and also helpful to save your cost by reducing water usage. Automatic Water Softening Plant is also aid to remove the hardness salts from water.

Advanced Ion Exchange Technology

Harnessing cutting-edge ion exchange resin technology, this water softening plant efficiently removes hardness-causing minerals from a wide range of water sources, including borewell, municipal, and industrial supplies. Its premium cation exchange resin ensures long-lasting performance with minimal maintenance required, making it ideal for both high and low TDS water.

Reliable and Customizable Regeneration System

Equipped with automatic/manual cyclic regeneration and a digital PLC or timer-based control system, the plant adapts to various operational needs. Operators can monitor key parameters such as water levels and pressure through intuitive displays, while regeneration is managed for optimal salt consumption and performance, reducing operator workload.

Robust Design and Safety Features

Constructed from durable FRP, mild steel, or stainless steel, and coated with high-grade epoxy, the system resists corrosion and withstands pressures up to 6 kg/cm2. Integrated safety measures like auto shut-off and overload protection, combined with silent operation (<45 dB), guarantee dependable, safe, and quiet functioning in various environments.

FAQ's of Automatic Water Softening Plant:

Q: How does the automatic water softening plant remove hardness from water?

A: The plant uses ion exchange technology with premium food-grade cation exchange resin to replace hardness-causing calcium and magnesium ions with sodium ions, efficiently reducing water hardness to below 5 ppm as CaCO3.

Q: What is the process for regeneration, and how often does it need to be performed?

A: Regeneration is carried out either automatically or manually, depending on the setup. It involves flushing the resin with a brine solution to restore its softening capacity. The frequency is determined by water hardness, usage, and system capacity-typically activated once the resin approaches saturation, as managed by the digital PLC or timer.

Q: When should resin be replaced in the water softening plant?

A: The premium food-grade cation exchange resin generally requires replacement every 3 to 5 years, depending on usage, raw water quality, and proper maintenance of the system.

Q: Where is this water softening plant ideally installed?

A: It is designed for floor mounting and is suited for industrial, commercial, and residential settings-such as near boilers, cooling towers, RO plants, or general water supply points-where water hardness removal is required.

Q: What are the main benefits of using this automatic water softening plant?

A: Key benefits include consistent hardness removal, automatic operation with low maintenance, compatibility with multiple water sources, robust construction for long service life, efficient salt usage, and compliance with ISO and CE certifications.

Q: How can the plant handle different water sources and flow rates?

A: The system is engineered to work with borewell, municipal, or industrial water sources and supports flow rates ranging from 1000 LPH up to 50000 LPH. Customizable dimensions and storage capacities make it versatile across various applications.
